Rolling Shutters for Increased Home Protection
RESIDENTIAL ROLLING SECURITY SHUTTERS
Our residential security shutters
are ideal for single-family homes and multi-family complexes. Rolling security shutters have clean lines with a consistent design that when they are placed on a multi-story building the look very professional. Rolling shutters retract into small, well-designed curved, beveled, or square housings so they blend the home’s architecture. Our security shutters are engineered to protect door openings and very large window. No power-no problem battery operated systems are available.
Rolling Shutters provide:
Advance Protection
Security
Energy Efficiency
Privacy
Total Light Control

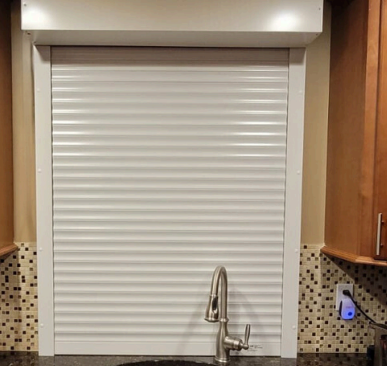

Home Security Shutter Options

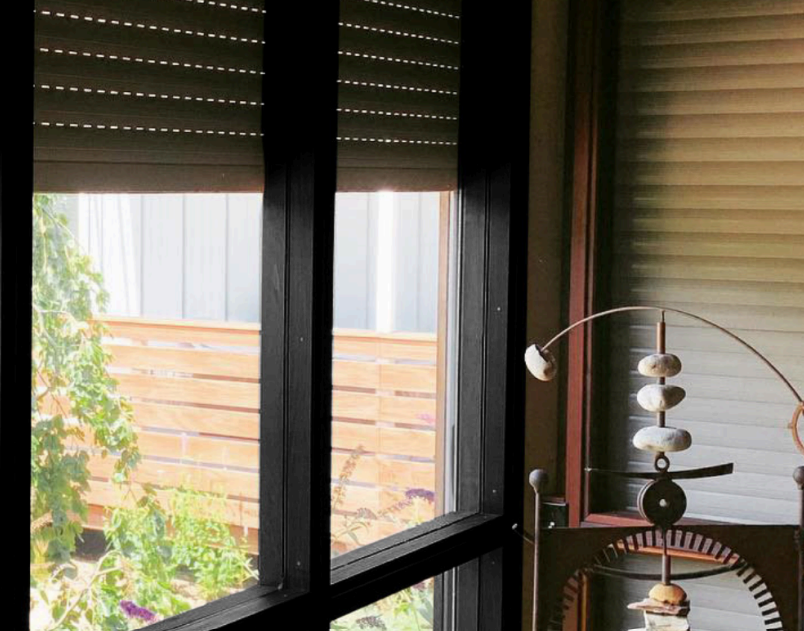

Storm Security Shutters
Color Options
Consult actual mfr. product samples for exact color representation.

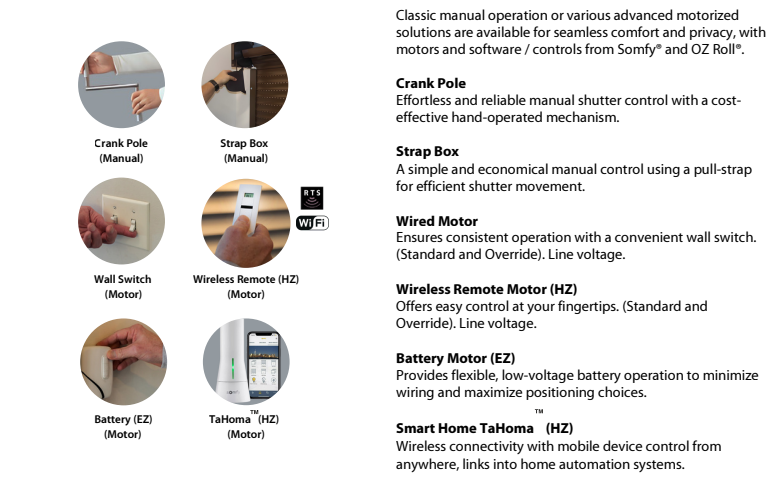

Operating Systems
Manual Controls
Manual Strap
Standard control for smaller shutters. Controls up to 25 lbs.
3-1 Strap Crank
3-1 crank ration for small to medium size rolling doors. An economical way to control a medium size shutter. Controls up to 45 lbs.
Pole Crank
Geared system with pole operator for medium size rollup shutters. Optional removable pole operator available. Controls up to 80 lbs.
Quick and easy installation. Simply push up and pull down the shutter. An exclusive feature of QMI roller shutters with no-slip hinges.
Electric Controls
Motor Operated
Electric motor for all roll shutter sizes. Optional manual override, and advanced electrical control systems are available. Draws 1.5 to 3.5 amps depending on size.
Low Voltage
Our EZ-Drive System features the Smart Drive Motor. Just plug in to recharge. No electrician is necessary.

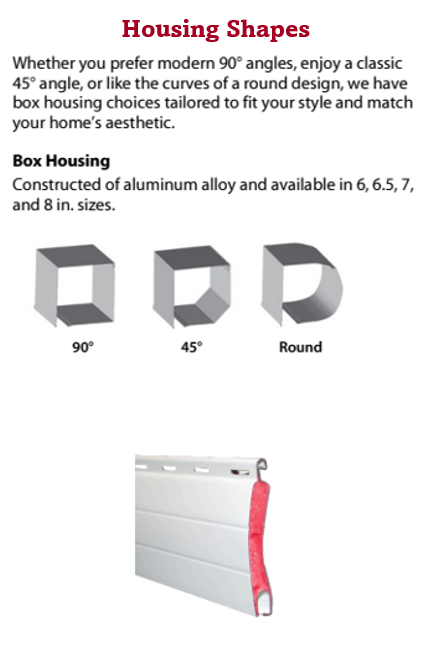

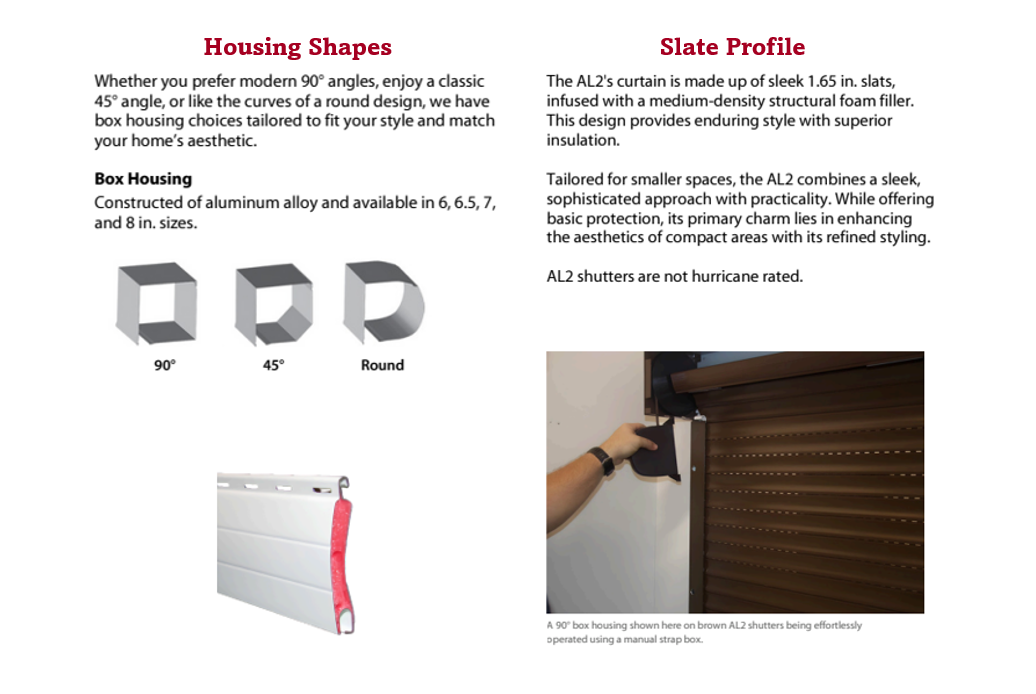

Curtain Profiles
AL7-E Extruded aluminum single wall rollup shutter
Rolls up in tight coil to reduce head box size.
US60 Extruded aluminum double wall roller shutter
Air space enhances energy performance

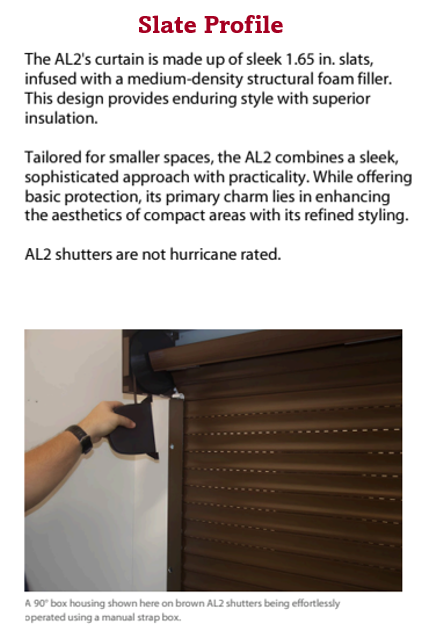

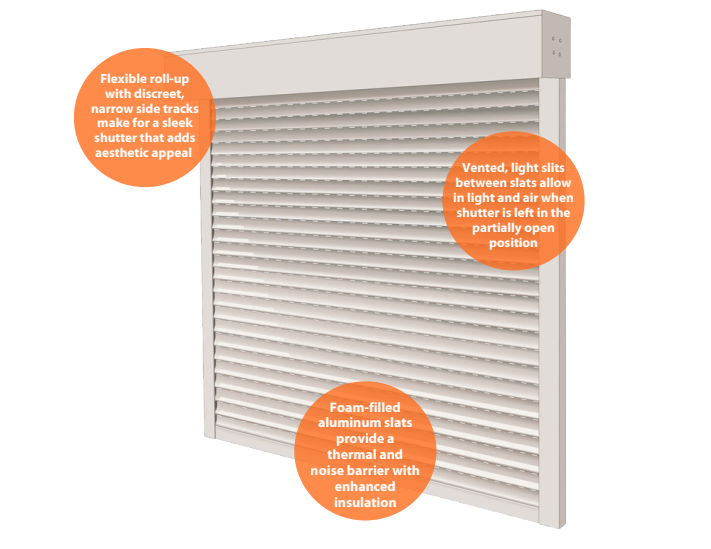

AL2E Extruded aluminum double wall roll up shutters
Light slits to illuminate during daylight with shutters closed.
Smaller roll-up and narrower side tracks.
P55 PVC double wall roll shutter
Excellent protection against cold, heat and noise
Aluminum retained bars through slat from side channel to side channel
AL7 Punch Patterns
Miami-Dade HVHZ Building code approved
Florida Building Commission (FBC) approved
Texas Department of Insurance (TDI) approved
Wind and impact test approved
Approximate AL7 Maximum Overall Shutter Heights
Motor Operated Shutters Only
Box Sizes
6″ 7″ 8″ 10″ 12″
Slats Only 57″ 92″ 129″ 192″ 271″
Slats + Lock Slat 41″ 89″ 116″ 180″ 250″
Manual Operated Shutters
Box Sizes
6″ 7″ 8″ 10″
Slats Only 54″ 89″ 126″ 162″
Slats + Finger Pull 46″ 89″ 116″ 144″
Slats + Lock Slat 41″ 81″ 116″ 138″
Slats + Finger Pull & Lock Slat – 73″ 111″ 130″
